React Native Community contribution

DateTimePicker component

Over the years React Native has grown substantially. In an effort to reduce the size, complexity, and dependencies for React Native a number of modules were selected to be transformed to community modules. Among other modules, DatePickerIOS, DatePickerAndroid and TimePickerAndroid were listed. Upcoming feature work for the GoDaddy mobile app required us to integrate against these modules. What better moment to give back to the React Native community? We migrated and merged the modules as a means to contribute to the lean core initiative and join forces with the open source community of React Native.

Uniform cross-platform components

The migration effort was outlined in a proposal which lists three distinct goals.

Migrate DatePickerIOS, DatePickerAndroid and TimePickerAndroid from React Native core to a separate module.
Merge DatePickerAndroid and TimePickerAndroid to match the feature set for iOS, which supports both date and time modes.
Transform the Android APIs to React components.

By merging both Android modules and transforming the functional API to React components there are fewer platform-specific implementations. The overall goal of the new combined module is to be a cross-platform React component. It will try to converge the features of iOS and Android as much as possible.

Welcome `@react-native-community/datetimepicker`

Combined, the set of Android and iOS modules form a new @react-native-community/datetimepicker component. To use this module install it with npm or yarn and use react-native link to bundle it in your project.

npm install --save @react-native-community/datetimepicker
react-native link @react-native-community/datetimepicker

This will make the React component available for use in your project. Components will be rendered with default native UX for their respective pickers. The example below will render a date picker as Modal on Android and an inline component on iOS.

import DateTimePicker from '@react-native-community/datetimepicker';

function renderMyComponent({ date, onChange }) {
  return <DateTimePicker value={date} onChange={onChange} mode="date" />
}

Internally, the module uses React Native’s requireNativeComponent to require the renamed native module RNDateTimePicker. A more detailed description for installation per platform is available in the documentation of the component.

The current component and API’s are still part of React Native. However, you can use the modules next to existing implementations. The externalized component has no references to the old code nor shares the old namespace. This makes migrating easier since you don’t have to worry about the exact React Native release that will not include the date and time pickers.

Community guidelines

We took care to follow the current community standards as closely as possible. As such the module:

is provided with Detox integration tests.
uses the circle.ci orb from the community to do automated testing.
provides an example app that works.
uses React Native’s eslint package to lint all code.
has a podspec file available from the root folder.

In addition, transforming Mocha tests to Ekke would be a nice new feature for the component. It would increase confidence in the DateTimePicker features by running unit tests on an actual device and/or emulator.

Reducing API complexity

The externalization of components presented us with an opportunity to reduce platform-specific implementations. Android had a function based API that returns a Promise and only renders a modal once. That implementation doesn’t fit the React render lifecycle well since external state has to be kept to track render state. We’ll demonstrate the Android API changes later.

For now, let’s focus on the second goal: merging the feature set of both platforms. The merger of APIs highlighted a few discrepancies. For example, iOS uses maximumDate and minimumDate to restrict range, whereas Android used maxDate and minDate. Similarly, contrary to what the name suggests DatePickerIOS is also capable of displaying as time picker by setting mode=time or mode=datetime.

Available options

value Replaces the date prop. This is a better name for controlling the value of the time picker. In either case, it has to be a JavaScript Date object.
onChange This methods returns both the selected Date as well as the SyntheticEvent whenever the selected date changes. In addition, onDateChange was deprecated for iOS. Rather than having two methods, onChange now provides the functionality of both. For Android Promise.resolve will use this callback whenever a date is selected.
mode Determines what picker should be displayed. The modes date and time are available for both platforms. However, datetime is only available for iOS. On Android mode=time will use the native TimePicker modal.
maximumDate sets the maximum allowed date or time. This replaces Android’s maxDate implementation.
minimumDate sets the minimum allowed date or time. this replaces Android’s minDate implementation.
display This new property controls how the picker is displayed for Android which supports displaying pickers as spinner or calendar.

React render lifecycle

To make the Android API a better fit for the React render lifecycle it has to act more like a renderable React Component, e.g. <DateTimePicker />. This is achieved by storing a reference to an open instance of the modal whereas the original implementation would dismiss the picker modal on each consecutive call to the API. In the new implementation the open instance of the modal will be updated with the value from provided properties.

public class RNDatePickerDialogFragment extends DialogFragment {
  private DatePickerDialog instance;

  @Nullable
  private OnDateSetListener mOnDateSetListener;
  @Nullable
  private OnDismissListener mOnDismissListener;

  @Override
  public Dialog onCreateDialog(Bundle savedInstanceState) {
    Bundle args = getArguments();
    instance = createDialog(args, getActivity(), mOnDateSetListener);
    return instance;
  }

  ...
}

Show, don’t tell

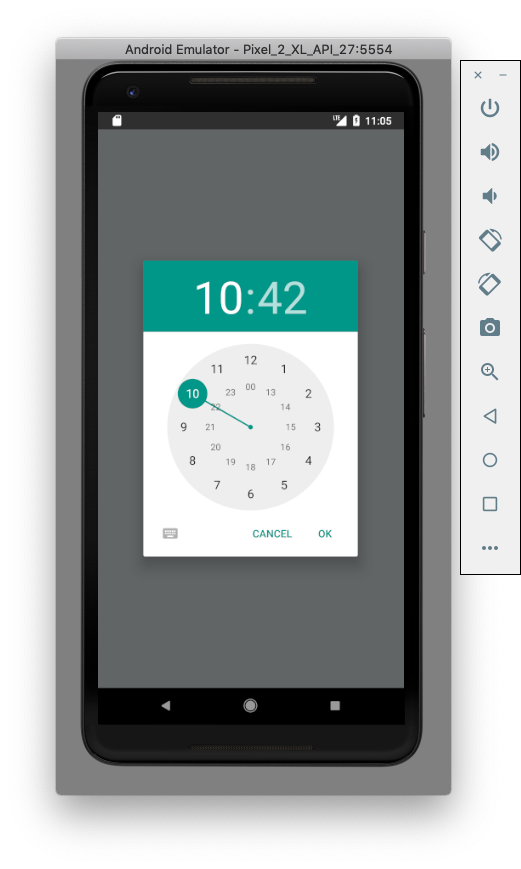

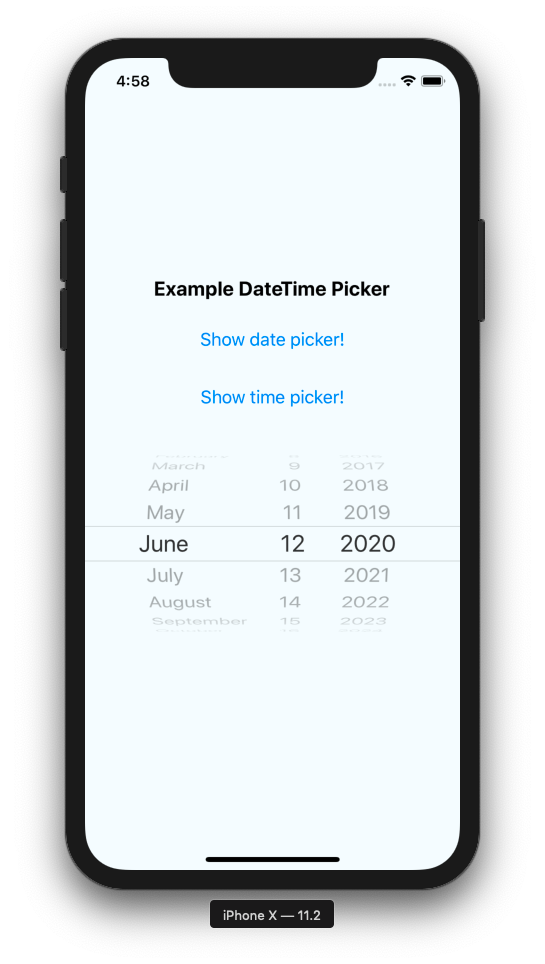

The component comes with a runnable React Native example app that uses the new component. Below are examples of the date and time picker on both platforms.

This contribution to the lean core initiative will allow the community to continue adding new features and bug fixes to the React Native DateTimePicker component without needing a new release of React Native itself.
